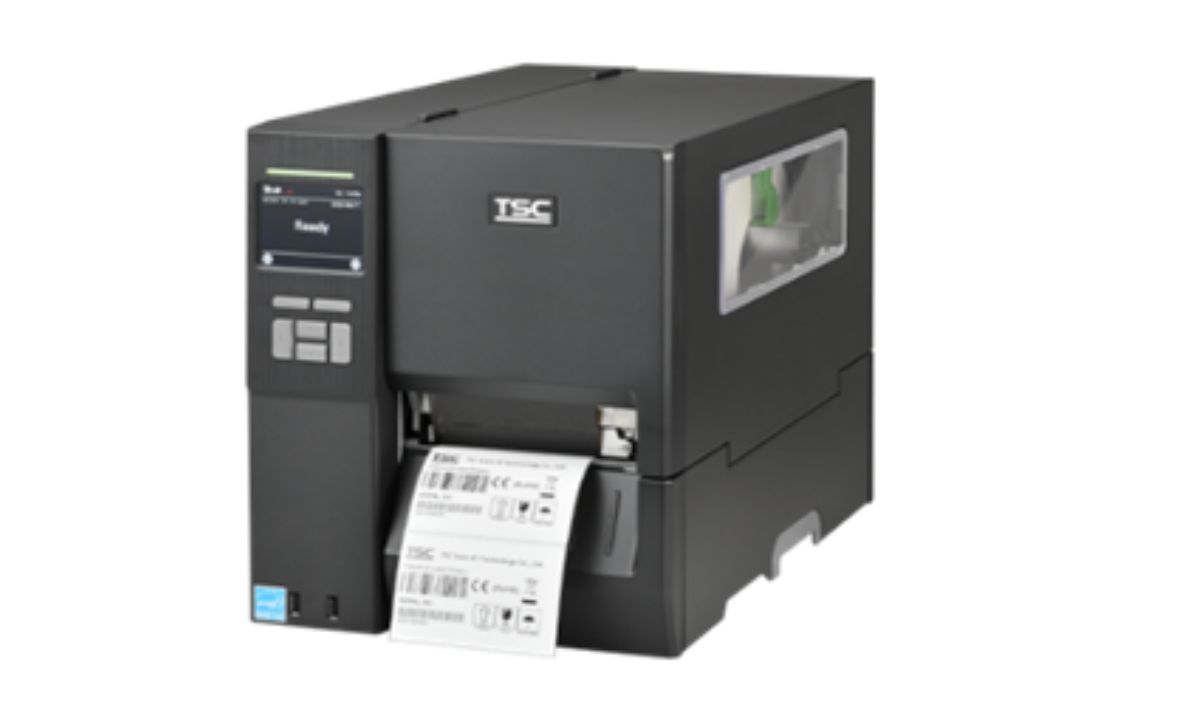

TSC MH241T 4-inch Industrial Barcode Printer (203dpi)
TSC MH241T 4-inch Industrial Barcode Printer (203dpi)
Barcode PrinterThe TSC MH241T is a compact yet powerful 4-inch industrial barcode printer designed for high-performance labeling applications. Featuring premium printhead technology and a fast processor, this printer delivers high-quality labels at impressive speeds. Perfect for businesses that require reliable, high-volume printing in a space-efficient design.
Key Features of the TSC MH241T Label Printer:
- Resolution: 203 DPI (8 dots/mm) for crisp, clear printing
- Print Width: 4 inches (maximum) for versatile label applications
- Print Speed: Up to 10 inches per second for efficient operations
- Print Method: Direct thermal and thermal transfer printing
- Memory: 128MB Flash, 64MB SDRAM for handling complex label designs
- Connectivity: USB 2.0, Serial RS-232, Ethernet 10/100, Optional Wi-Fi/Bluetooth
- Media Handling: Supports 1" to 4.5" label widths, 5" maximum roll diameter
- Dimensions: Compact design ideal for limited workspace
Product Specifications
| Feature | Detail |
|---|---|
| Brand | TSC |
| Model | MH241T Industrial Barcode Printer (203dpi) |
| Print Resolution | 203 DPI |
| Print Width | 4 inches maximum |
| Print Speed | Up to 10 inches per second |
| Print Method | Direct Thermal & Thermal Transfer |
| Memory | 128MB Flash, 64MB SDRAM |
| Connectivity | USB 2.0, Serial RS-232, Ethernet 10/100, Optional Wi-Fi/Bluetooth |
| Supported 1D Barcodes | Code 128, Code 39, Code 93, EAN-13, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, MSI, ITF-14 |
| Supported 2D Barcodes | QR Code, DataMatrix, PDF417, Aztec, MaxiCode |
| Media Compatibility | Label widths: 1.0" to 4.5", Max roll diameter: 5 inches |
| Dimensions (W×D×H) | 11.8" × 14.9" × 12.6" (300 × 378 × 320 mm) |
| Weight | Approximately 17.6 lbs (8 kg) |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Power Supply | Input: 100-240V AC, 50-60Hz, Output: 24V DC, 4.2A |
Product Details
The TSC MH241T Industrial Barcode Printer is a robust and reliable 4-inch printing solution engineered for demanding industrial environments. With its 203dpi resolution, this printer produces sharp, high-quality barcodes, text, and graphics that ensure excellent scannability and readability.
Designed for versatility, the MH241T supports both direct thermal and thermal transfer printing methods, allowing businesses to choose the most suitable option for their specific application needs. Whether printing shipping labels, product identification tags, or compliance labels, this printer delivers consistent, professional results.
The printer's advanced connectivity options including USB, Ethernet, and optional wireless capabilities make it easy to integrate into existing network infrastructures. This flexibility supports seamless operation in warehouse management systems, manufacturing environments, retail settings, and distribution centers.
With its compact footprint, the MH241T is ideal for space-constrained environments while maintaining industrial-grade durability. The printer features a large memory capacity to handle complex label designs and batch printing operations efficiently, ensuring productivity even during high-volume printing sessions.
The MH241T is built to withstand the rigors of industrial use with a sturdy metal construction and reliable print mechanism. It's backed by TSC's reputation for quality and supported by Markaa's comprehensive service network, ensuring long-term reliability and minimal downtime for your business operations.
TSC MH241T Industrial Barcode Printer (203dpi) Brochure

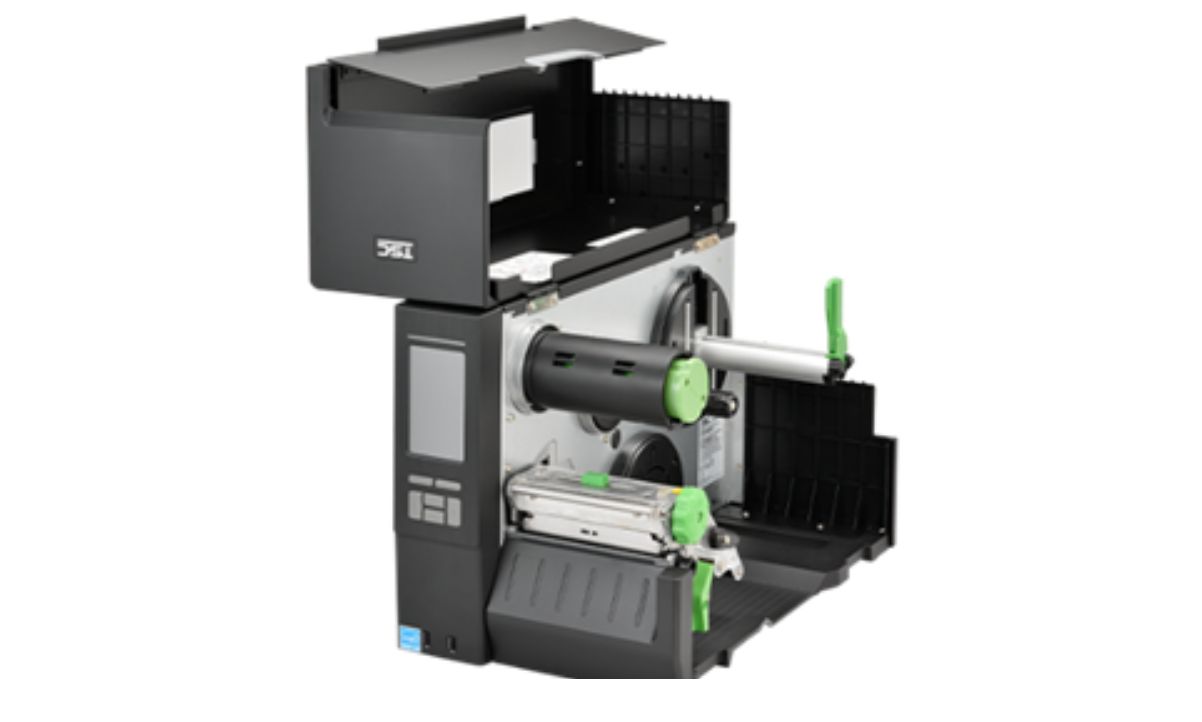

TSC MH241 Series: Loading the Ribbon and Media
Step-by-step tutorial on how to properly load ribbon and media into the TSC MH241 series printers for optimal printing performance.
TSC MH241 Series: Loading Tutorial (Full View)
Detailed guide showing the complete process of loading ribbon and media in the TSC MH241 series industrial printers with enhanced visibility.
