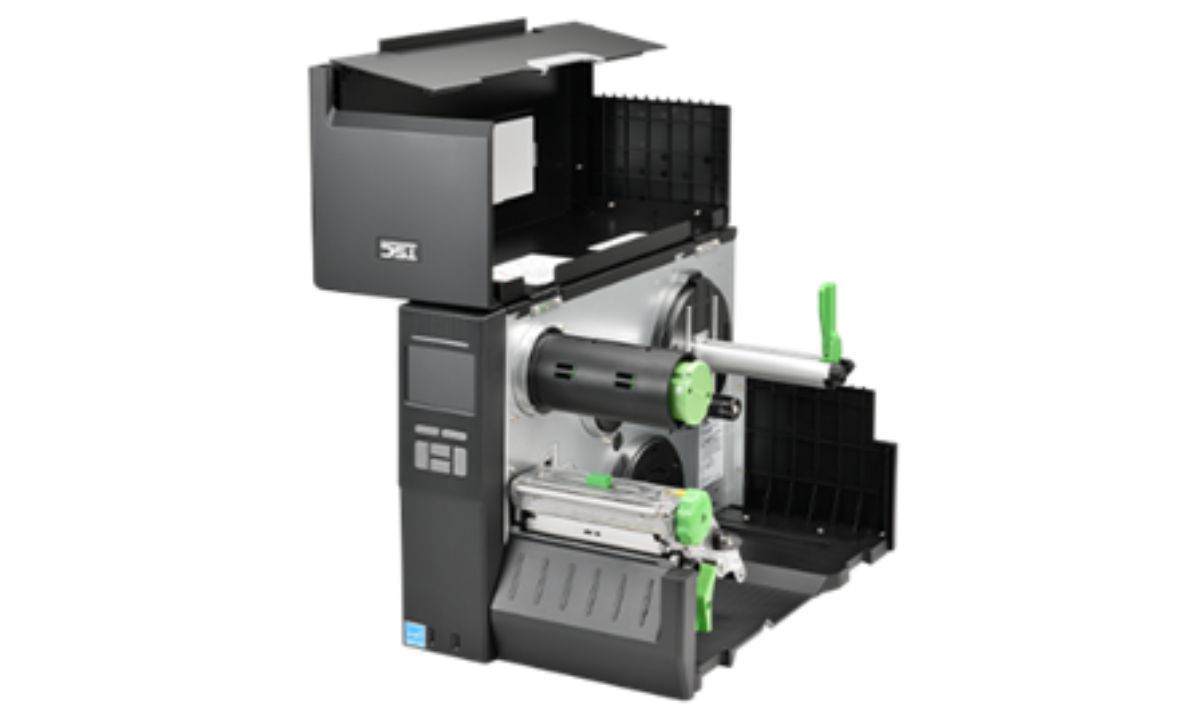

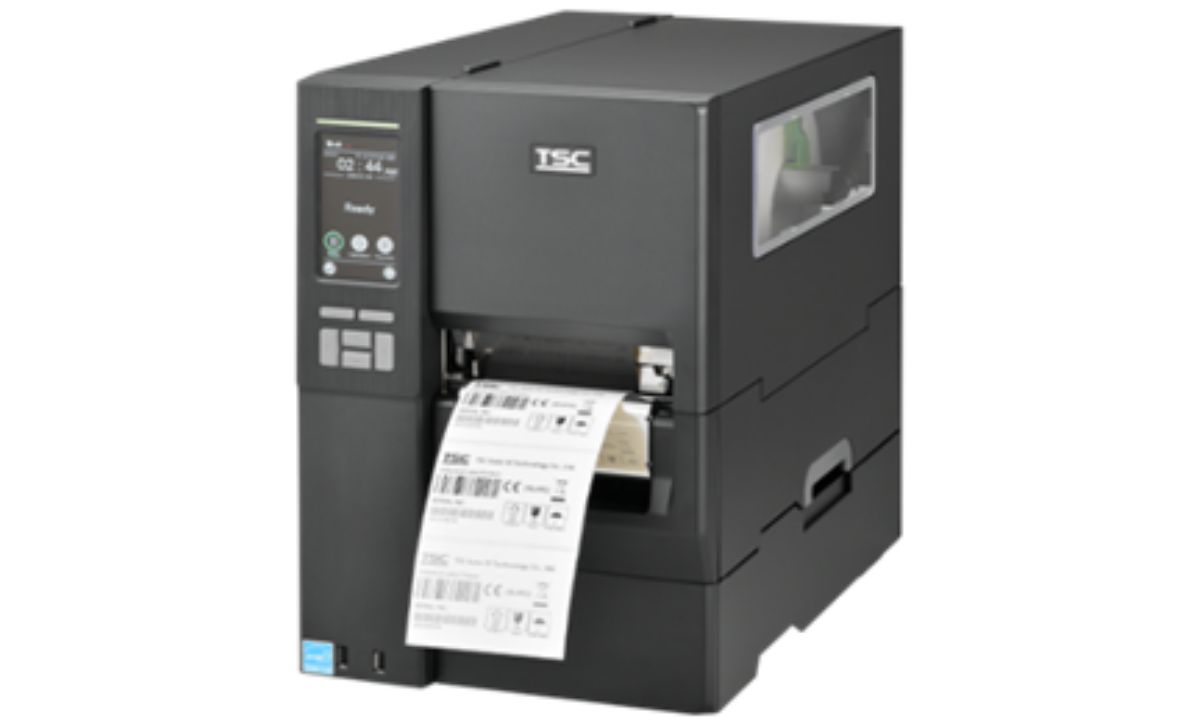

TSC MH-341T Industrial Barcode Printer (300dpi)
TSC MH-341T Industrial Barcode Printer (300dpi)
Barcode PrinterThe MH-341T Industrial Barcode Printer is part of TSC's flagship MH series, designed for high-performance industrial printing applications. With its premium 300dpi printhead technology, fast processor, and extensive memory capacity, it delivers superior print quality at impressive speeds. This robust printer is engineered for demanding environments and high-volume printing needs across various industries.
Key Features of the TSC MH-341T Label Printer:
- Resolution : 300 DPI (12 dots/mm) - High-Definition Printing
- Max. Print Width : 4.1 Inches (104mm)
- Max. Print Length : 99.8 inches (2536mm)
- Maximum Print Speed : 10 ips (inches per second)
- Print Method : Direct Thermal & Thermal Transfer
- Memory : 128MB Flash, 256MB SDRAM
- Weight : 14.5 kg (31.97 lbs)
- Communication Interfaces : USB 2.0, Ethernet, Serial, Parallel (Optional: Wi-Fi, Bluetooth)
Product Specifications
| Feature | Detail |
|---|---|
| Brand | TSC |
| Model | MH-341T Industrial Barcode Printer (300dpi) |
| Print Resolution | 300 DPI (12 dots/mm) |
| Print Width | 4.1 inches (104mm) maximum |
| Print Speed | Up to 10 inches per second (ips) |
| Connectivity | USB 2.0, Ethernet (10/100), Serial RS-232, Parallel (Optional: Wi-Fi, Bluetooth) |
| Supported 1D Barcodes | Code 128, Code 39, Code 93, EAN-13, EAN-8, UPC-A, UPC-E, EAN/UPC Add-Ons, Interleaved 2 of 5, MSI, Codabar, ITF-14, Postnet, and more |
| Supported 2D Barcodes | QR Code, DataMatrix, PDF417, Aztec, Micro PDF417, and other advanced 2D barcode formats |
| Media Compatibility | Label widths from 1.0" to 4.1", maximum outer diameter of 5 inches (127mm) |
| Ribbon Compatibility | Wax, Wax-Resin, Resin ribbons, maximum outer diameter: 1.57 inches (40mm) |
| Display | 3.5-inch color LCD with multi-language support |
| Dimensions (W x D x H) | 12.6" x 15.6" x 12.4" (320 x 396 x 315 mm) |
| Weight | 14.5 kg (31.97 lbs) |
| Operating Temperature | 41째F to 104째F (5째C to 40째C) |
| Power Supply | Auto-switching 100-240V AC, 50-60Hz |
Product Details
The TSC MH-341T Industrial Barcode Printer is a high-performance printing solution designed to meet the rigorous demands of industrial and commercial labeling applications. With its exceptional 300dpi resolution, this printer produces crisp, clear, and highly readable barcodes, text, and graphics, making it ideal for applications requiring detailed printing such as electronics, pharmaceuticals, and high-value product labeling.
Equipped with versatile connectivity options including USB, Ethernet, Serial, and Parallel ports, the MH-341T seamlessly integrates into various network environments. Optional Wi-Fi and Bluetooth capabilities provide enhanced flexibility for wireless network integration, making it suitable for modern, mobile workplaces.
The printer supports an extensive range of barcode symbologies including both 1D barcodes (Code 128, Code 39, EAN, UPC) and 2D barcodes (QR Code, DataMatrix, PDF417), ensuring compatibility with diverse industry standards and applications from inventory management to product authentication.
With its robust metal construction, large memory capacity (128MB Flash, 256MB SDRAM), and user-friendly 3.5-inch color LCD display, the MH-341T is built for reliability and ease of use in demanding environments. It accommodates media widths from 1.0" to 4.1" and handles rolls up to 5 inches in diameter, offering flexibility for various label sizes and types.
TSC MH-341T Industrial Barcode Printer (300dpi) - Brochure
TSC 341T Series: Loading the Ribbon and Media
Step-by-step tutorial on how to properly load ribbon and media into the TSC 341T series printers for optimal printing performance.
TSC 341T Series: Loading Tutorial (Full View)
Detailed guide showing the complete process of loading ribbon and media in the TSC 341T series industrial printers with enhanced visibility.
