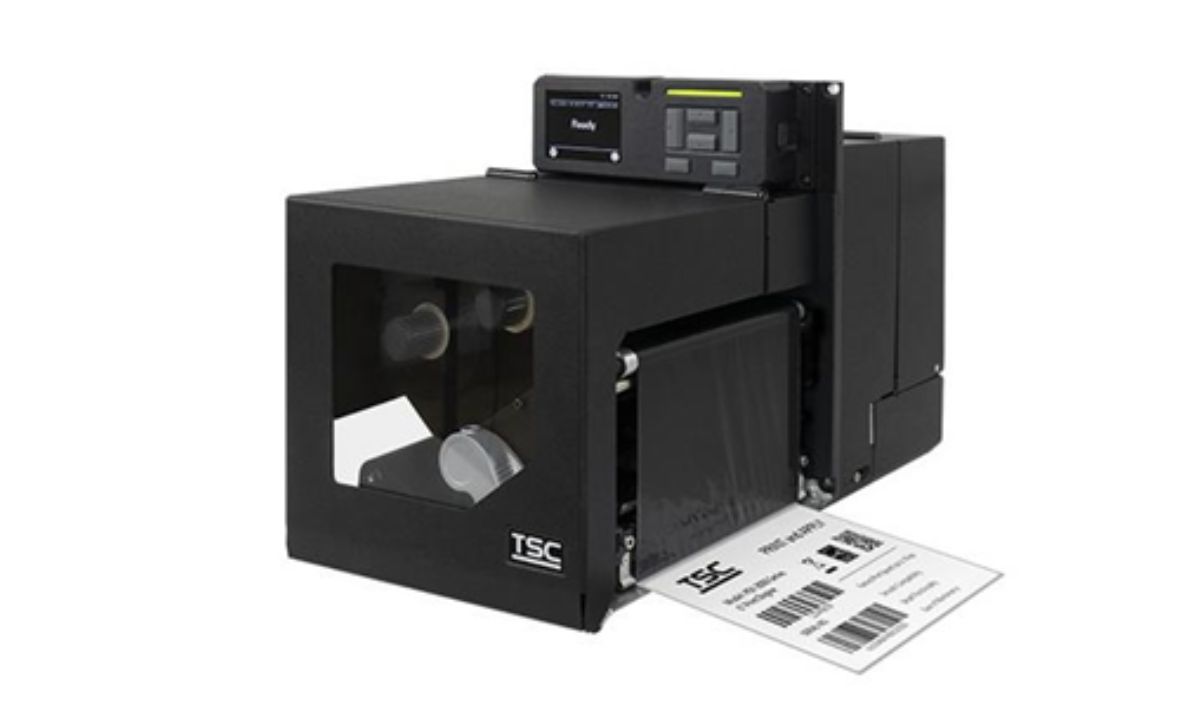

The TSC PEX-2360L is a robust 6-inch industrial barcode printer designed for high-volume, wide-format labeling applications in demanding environments. With its impressive 6.2-inch maximum print width and 203 dpi resolution, this industrial-grade printer delivers exceptional performance for warehouses, manufacturing facilities, logistics centers, and distribution hubs that require large-scale label production with superior durability and speed. Engineered for continuous operation, the PEX-2360L combines industrial strength with precise printing capabilities to meet the most challenging labeling requirements.

Key Features of the TSC PEX-2360L Industrial Printer:

Industrial Print Width: 6.2 inches (157 mm) maximum for large format labeling
High-Speed Performance: Up to 10 inches per second (254 mm/sec) printing speed
Superior Resolution: 203 DPI for crisp, scannable barcodes and clear text
Industrial Durability: Metal construction for reliable performance in demanding environments
Large Media Capacity: Supports 8-inch (203 mm) roll diameter for extended operation
Advanced Connectivity: USB 2.0, Serial, Ethernet, and optional wireless
Enhanced Memory: 16MB Flash, 8MB SDRAM for complex label designs
Flexible Printing Modes: Direct thermal and thermal transfer capabilities
Wide Media Compatibility: 2.0" to 6.3" label widths, various thicknesses
Professional Barcode Support: Comprehensive 1D and 2D symbology support
Industrial-Grade Sensors: Precise media detection and alignment
Energy Efficient: Low power consumption with high output
Easy Maintenance: Modular design for simple service and upkeep

Product Specifications

Feature	Detail
Brand	TSC Auto ID
Model	PEX-2360L Industrial Barcode Printer (203 dpi)
Printer Type	Industrial Thermal Barcode Printer
Print Resolution	203 DPI (8 dots/mm)
Maximum Print Width	6.2 inches (157 mm)
Print Speed	Up to 10 ips (254 mm/sec)
Print Method	Direct Thermal & Thermal Transfer
Memory Configuration	16MB Flash, 8MB SDRAM
Standard Interfaces	USB 2.0, Serial RS-232, Ethernet 10/100
Optional Interfaces	Wireless 802.11 b/g/n, Bluetooth
Supported Barcode Types	Code 128, Code 39, Code 93, EAN-13, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, MSI, Pharmacode, GS1-128, RSS-14, QR Code, DataMatrix, PDF417, MaxiCode, Aztec Code
Media Compatibility	Label widths: 2.0" to 6.3" (51 to 160 mm), Max roll diameter: 8" (203 mm)
Label Thickness Range	0.002" to 0.012" (0.05 to 0.30 mm)
Physical Dimensions	13.8" × 15.7" × 14.2" (350 × 399 × 360 mm)
Unit Weight	Approximately 22 lbs (10 kg)
Operating Environment	41°F to 104°F (5°C to 40°C), 20-85% RH (non-condensing)
Power Requirements	Input: 100-240V AC, 50-60Hz, Output: 24V DC, 5A
Printhead Longevity	100 km (under normal operating conditions)
Noise Level	Less than 60 dB during operation
Sensor Technology	Reflective, Transmissive, and Gap sensors
Graphics Support	PCX, BMP, IMG, GRF, PNG formats
Command Languages	TSPL-EZ, TSPL2, ZPL compatible

Product Details

The TSC PEX-2360L Industrial Barcode Printer represents the pinnacle of wide-format labeling technology, specifically engineered for high-volume production environments where reliability, speed, and print quality are non-negotiable. With its substantial 6.2-inch print width capability, this industrial workhorse handles the largest standard label formats used in warehouse management, logistics, manufacturing, and distribution operations. The 203 dpi resolution ensures that even the most detailed barcodes, small text, and complex graphics maintain perfect clarity and scanning reliability across the entire print width.

Designed for continuous operation in demanding industrial settings, the PEX-2360L features a robust metal construction that withstands the rigors of 24/7 production environments. The printer's industrial-grade components and thermal printhead are engineered for extended duty cycles, minimizing downtime and maximizing productivity. The large 8-inch maximum roll diameter capability significantly reduces media change frequency, allowing for uninterrupted operation during critical production runs and peak operational periods.

The PEX-2360L's exceptional print speed of up to 10 inches per second enables rapid label production without compromising quality. This high-speed capability is particularly valuable in environments with tight production schedules, high-volume shipping operations, and just-in-time manufacturing processes where labeling throughput directly impacts overall operational efficiency. The printer maintains consistent print quality at maximum speed, ensuring every label meets professional standards regardless of production volume.

This industrial printer excels in these demanding applications:

Warehouse & Distribution Centers: Large-format shipping labels, pallet tags, bin location labels, and inventory control tags with comprehensive information, barcodes, and handling instructions for efficient warehouse operations.
Manufacturing & Production Facilities: Product identification labels, serial number plates, compliance markings, quality control tags, and production tracking labels for manufacturing processes and finished goods.
Logistics & Transportation: Bill of lading labels, freight shipping labels, hazardous material markings, customs documentation, and tracking labels for domestic and international shipments.
Retail Distribution: Shelf edge labels, promotional signage, price markers, product information tags, and inventory management labels for retail environments and distribution networks.
Cold Storage & Freezer Applications: Labels specifically designed for low-temperature environments, with adhesives and materials that maintain integrity in freezer conditions and cold chain logistics.
Automotive & Industrial Parts: Part identification labels, serial number plates, compliance markings, and tracking labels for automotive components, industrial equipment, and spare parts management.
Pharmaceutical & Healthcare: Batch labels, expiration date markers, pharmaceutical packaging, medical device labeling, and compliance documentation for healthcare and pharmaceutical industries.
Electronics Manufacturing: PCB labels, component identification, serial number plates, and quality control markings for electronics production and assembly operations.

The dual-printing capability (direct thermal and thermal transfer) provides unparalleled flexibility for various labeling requirements. Direct thermal printing offers cost-effective solutions for short-to-medium term applications, while thermal transfer printing with resin ribbons delivers exceptional durability for labels requiring extended outdoor exposure, chemical resistance, abrasion tolerance, and long-term legibility in harsh environmental conditions.

Advanced media handling systems ensure precise label alignment and consistent print quality across various materials. The printer accommodates label widths from 2.0 to 6.3 inches and thicknesses from 0.002 to 0.012 inches, providing compatibility with a wide range of label stocks including paper, synthetic materials, polyester, polypropylene, and specialized industrial label materials. The integrated sensor array (reflective, transmissive, and gap sensors) ensures accurate media detection and proper label positioning for every print job.

Comprehensive connectivity options facilitate seamless integration into existing industrial networks and systems. Standard USB 2.0, Serial RS-232, and Ethernet 10/100 interfaces provide flexible connection options, while optional wireless 802.11 b/g/n and Bluetooth capabilities enable mobile and flexible deployment scenarios. The printer supports multiple industry-standard command languages including TSPL-EZ, TSPL2, and ZPL compatibility, ensuring straightforward integration with existing labeling software and enterprise systems.

The enhanced memory configuration (16MB Flash, 8MB SDRAM) supports complex label designs with multiple graphics, fonts, and barcode elements while maintaining fast processing speeds. This capability is particularly valuable for labels incorporating company logos, regulatory symbols, multiple language text, and complex data elements across the wide print format.

Energy-efficient operation combined with industrial-grade performance makes the PEX-2360L an environmentally responsible choice for high-volume labeling operations. The printer's power management system optimizes energy consumption during both active printing and standby periods, contributing to reduced operational costs and environmental impact.

Maintenance and serviceability are integral to the PEX-2360L's design philosophy. Modular components, easy-access service points, and comprehensive diagnostic capabilities simplify routine maintenance and reduce downtime. The industrial-grade printhead features an expected lifespan of approximately 100 kilometers, while the robust mechanical systems ensure reliable performance throughout extended service periods.

Backed by TSC's industrial expertise and supported by Markaa's comprehensive service network throughout India, the PEX-2360L represents a strategic investment for businesses requiring industrial-grade wide-format labeling capabilities. Whether expanding existing labeling operations or implementing new industrial labeling solutions, this printer delivers the performance, reliability, and quality needed to meet the most demanding industrial labeling requirements while providing excellent return on investment through superior productivity and minimal downtime.

TSC PEX-2360L 6-Inch Industrial Barcode Printer (203 dpi) - High-Speed Wide Format Label Printing
